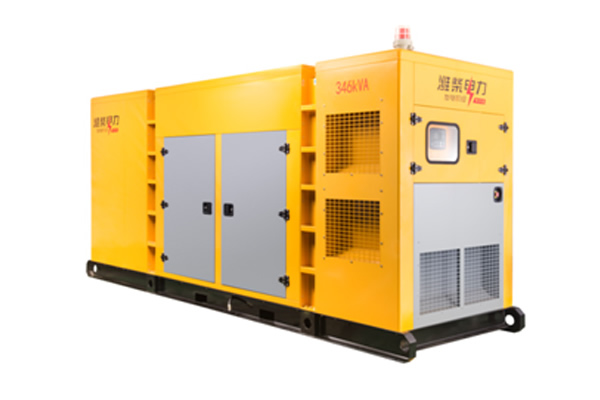

陆用燃气发电机组33KVA-1375KVA
型谱表：
|
机组型号 model |
备用功率 kVA/kW |
常用功率 kVA/kW |
额定转速 r/min rated speed |
启动方式 starting method |
柴油机 | |||
|
型号 model |
常用功率 kW |
|||||||
| WPG33*9NG3 | 33/26.4 | 30/24 | 1500 | 24V电启动 | WP4D44E200NG | 35 | ||
| WPG41*9NG3 | 41/33 | 37.5/30 | 1500 | 24V电启动 | WP4D44E200NG | 35 | ||
| WPG68.5*9NG3 | 68.5/55 | 62.5/50 | 1500 | 24V电启动 | WP4D66E300NG | 60 | ||
| WPG82.5*9NG3 | 82.5/66 | 75/60 | 1500 | 24V电启动 | WP4D77E300NG | 70 | ||
| WPG110*9NG3 | 110/88 | 100/80 | 1500 | 24V电启动 | WP6D100E300NG | 90 | ||
| WPG123.5*9NG3 | 123.5/99 | 112.5/90 | 1500 | 24V电启动 | WP6D132E300NG | 120 | ||
| WPG137.5*9NG3 | / | 125/100 | 1500 | 24V电启动 | WP6D100E300NG | 120 | ||
| WPG165*8NG3 | 165/132 | 150/120 | 1500 | 24V电启动 | WP10D158E300NG | 144 | ||
| WPG206*8NG3 | / | 187.5/150 | 1500 | 24V电启动 | WP10D200E300NG | 182 | ||
| WPG247.5*8NG3 | 247.5/198 | 225/180 | 1500 | 24V电启动 | WP12D238E300NG | 216 | ||
| WPG275*8NG3 | / | 250/200 | 1500 | 24V电启动 | WP12D264E300NG | 240 | ||
| WPG316*8NG3 | 316/253 | 287.5/230 | 1500 | 24V电启动 | WP13D286E300NG | 260 | ||
| WPG344*8NG3 | / | 312.5/250 | 1500 | 24V电启动 | WP13D317E300NG | 288 | ||
| WPG550*7NG3 | 550/440 | 500/400 | 1500 | 24V电启动 | 6M33D495E310NG | 450 | ||
| WPG687.5*7NG3 | 687.5/550 | 625/500 | 1500 | 24V电启动 | 12M26D605E300NG | 550 | ||
| WPG990*7NG3 | 990/792 | 900/720 | 1500 | 24V电启动 | 12M33D880E310NG | 800 | ||
| WPG1100*7NG3 | 1100/880 | 100/800 | 1500 | 24V电启动 | 12M33D968E310NG | 880 | ||
| WPG550*6NG3 | / | 500/400 | 1000 | 24V电启动 | CW6200ZT | 445 | ||
| WPG687.5*6NG3 | / | 625/500 | 1000 | 24V电启动 | CW8200ZT | 586 | ||
| WPG1100*6NG3 | / | 1000/800 | 1000 | 24V电启动 | CW12V200ZT | 880 | ||
| WPG1375*6NG3 | / | 1250/1000 | 1000 | 24V电启动 | WHM12V200D1104G101 | 1104 | ||
备注：产品参数、型谱仅供参考，陆用发电机组型谱请联系相关人员索取正式资料。
参数：
WP4/WP6/WP10/WP12/WP13/M33/CW/WHM产品
功率范围：33KVA~1375 KVA
额定转速：1500r/min
调速方式：电控调速
缸数：4/6/12
冷却方式：闭式风扇水箱冷却
